LinMot Pilot – Less coding, more motion

The LinMot Pilot is an intuitive, no-code robot control for multi-axis LinMot Flat Robots, requiring no PLC or programming knowledge.

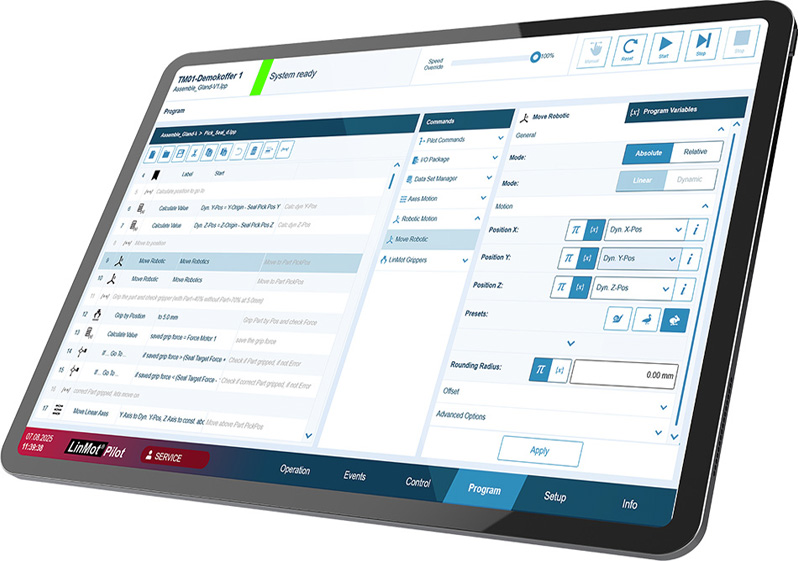

Motion sequences can be quickly configured and executed via a browser-based interface. Thanks to predefined commands and teach-in functions, simple applications such as pick-and-place and more demanding tasks such as screwing or conveyor synchronisation can be easily implemented. Since the control and system HMI are combined on a single platform, valuable time is saved during programming and commissioning.

1. Details

Programming like a pro – without prior knowledge

• No-code platform – no programming knowledge required
• No development environment necessary – work directly in your browser
• Intuitive operation: test and customise programmes without any barriers
• Minimal training time – ready to use immediately
• Fast prototyping: quickly turn your idea into action
• Know-how-based applications: process-specific applications that are parameterised via a wizard

Available functions in LinMot Pilot

• Logic commands
• Motion commands
• IO control & variable management
• Customisable interface

Expandable with upcoming know-how-based applications

• Conveyor tracking
• Camera interface
• Capping & screwing
• Pallettizing
• … and much more

Customisable interface (available soon)

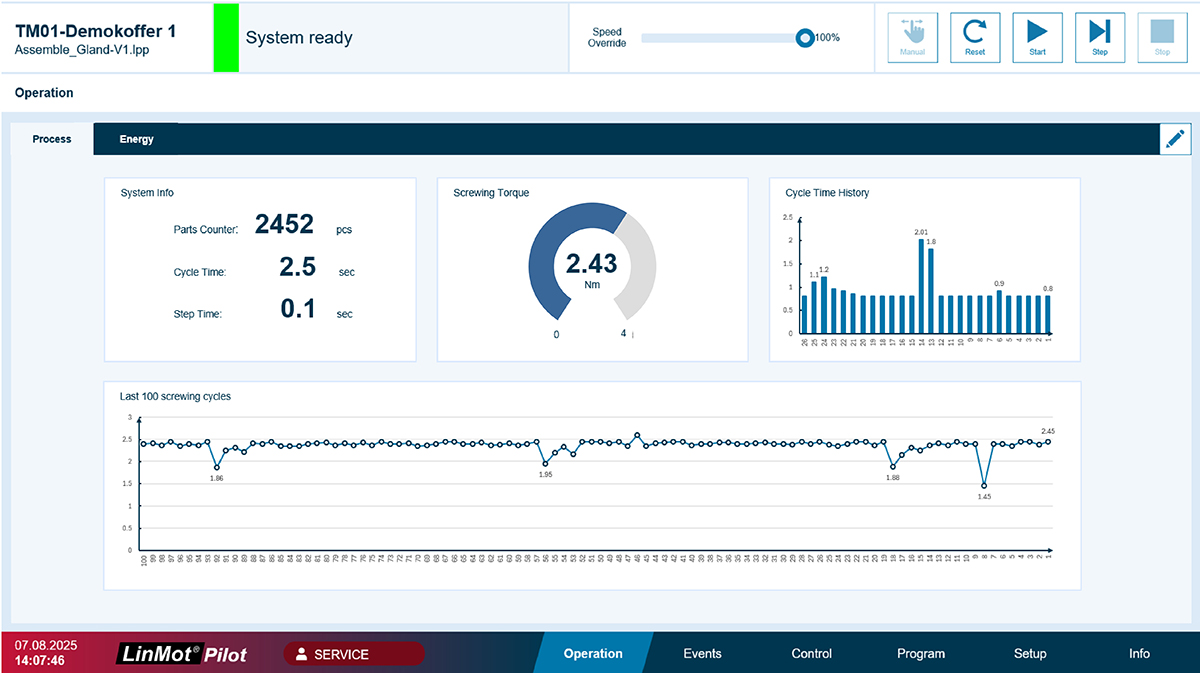

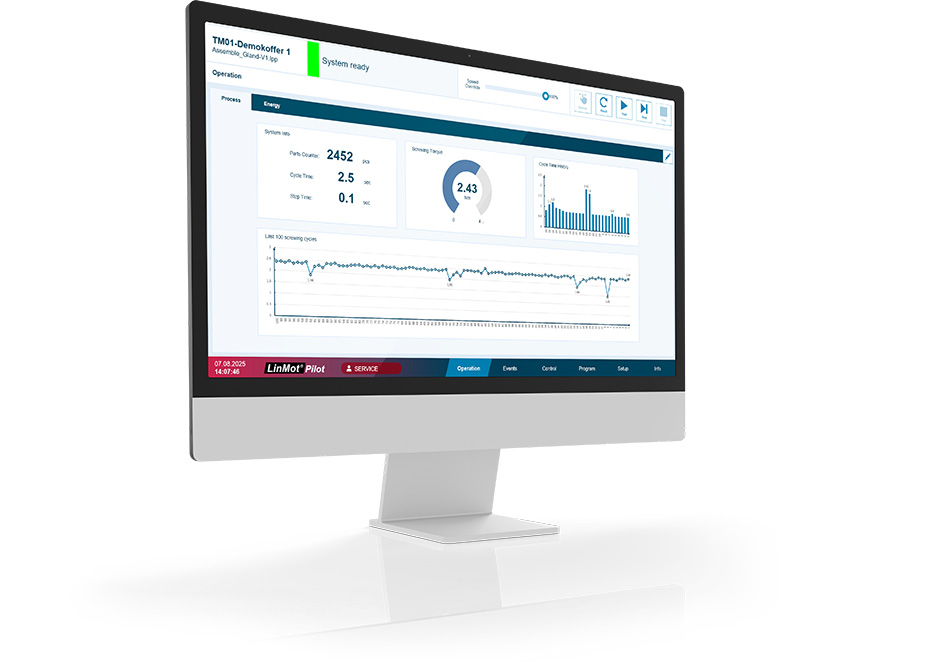

• Display relevant information on your operation tab
• Clean and modern design elements
• Visualization of process data, cycle time or many other information of the system
• User-defined controls for quick access to variables or functions
• Tailor the interface to match your application needs

The control system: TM01 technology module

• Up to 8 axes
• 4-core processor with 1.5 GHz
• 2 ms cycle time
• Profinet or EthernetIP with PLC
• EtherCAT, including fieldbus I/Os
• Industry 4.0 thanks to OPC UA



Also compatible with additional gateway

2. Videos

3. Application report

Take me to the Pilot

We spoke to Reto Brumann, LinMot‘s Product Manager for Robotics and the driving force behind LinMot Pilot, to find out more about this smart solution‘s idea, functions and potential. Read on for an interview about skills shortages, user-friendly technology, and the courage to simplify.

Read more
